FLANGED AND BUTT-WELD ENDS - KNIFE GATE CLASS 150 Sizes 2''-12''
Cast stainless steel body and investment cast yoke. In fabricated valves, leakage of corrosive medium due to neglected maintenance on the packing, or line pressure surges, causes corrosion and failure of most carbon steel or cast iron components. An all stainless steel valve offers better corrosion resistance than cast iron lined valves. The total cost of ownership becomes more attractive than the initial savings. |
| SPECIFICATIONS |
| Design
| API 600, ASME B 16.34 |
 |
| P-T Rating
| ASME B 16.34 |
| Connections
| ASME B 16.5, 16.25 |
| Face to Face
| ASME B 16.10 |
| Test & Inspection
| API 598, RP 591 |
| MATERIAL LIST |
| ITEM |
PARTS NAME |
MATERIALS Unless otherwise specified |
| 1 |
Body |
A216 Gr WCB |
| 2 |
Seat Ring/Facing |
A105 / Co-Cr-W Face or A216 Gr WCB / Co-Cr-W Face |
| 3 |
Wedge |
2"-6" A182 Gr F6a or A216 Gr WCB/13% Cr Face 8"-12" A216 Gr WCB / 13% Cr Face |
| 4 |
Stem |
A182 Gr F6a |
| 5 |
Backseat Bushing |
A276 Type 410 |
| 6 |
Gasket |
Flex Graphite w/ ss core |
| 7 |
Bonnet |
A216 Gr WCB |
| 8 |
Packing |
Graphoil w/ Braided Rings |
| 9 |
Gland |
A182 Gr F6a |
| 10 |
Gland Flange |
A105 |
| 11 |
Yoke Nut |
A439 Type D2 |
| 12 |
Yoke Bushing 2"-8" |
A536 Gr 65-45-12 |
| Yoke Cap 10"-12" |
A216 Gr WCB |
| 13 |
Handwheel |
A47Gr 32510 |
| 14 |
Handwheel Nut |
A47 Gr 32510 |
| 15 |
Gland Eyebolt |
Carbon Steel |
| 16 |
Gland Eyebolt Nut |
A307 Gr B |
| 17 |
Body Bonnet Stud |
A193 Gr B7 |
| 18 |
Body Bonnet Stud Nut |
A194 Gr 2H |
| 19 |
Gland Eyebolt Pin |
Carbon Steel |
| 20 |
Grease Fitting |
Carbon Steel |
| 21 |
Set Screw |
Carbon Steel |
| 22 |
Key |
Carbon Steel |
| 23 |
Bolt |
Carbon Steel |
|
|

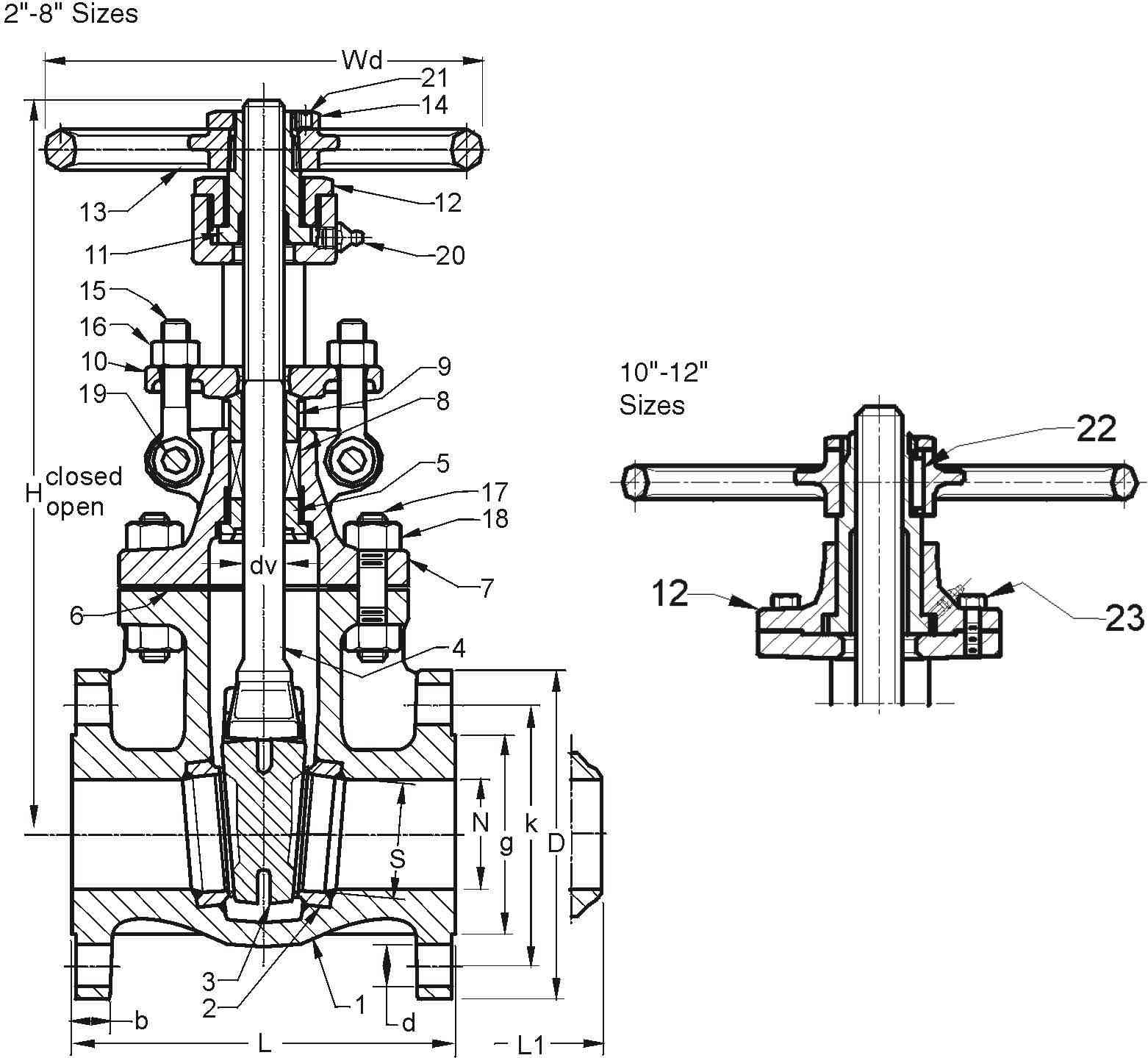

DIMENSIONS
| Size |
Port Dia. Dia. |
Dia. |
Line Flange Thickness Bolt Circle Hole Dia |
Raised |
Face to |
BW |
Height Open Closed |
Stem |
Line Flange Bolts Quantity Size |
Turns to |
Hand- |
Weight |
| NPS |
N S |
D |
(min.) Dia. b k d |
Face Dia. g |
Face L |
L1 |
H H |
dv |
|
Open |
wheel Wd |
Approx. |
|
INCHES INCHES |
INCHES |
INCHES INCHES INCHES |
INCHES |
INCHES |
INCHES |
INCHES INCHES |
INCHES |
INCHES |
|
INCHES |
lbs |
|
(mm) (mm) |
(mm) |
(mm) (mm) (mm) |
(mm) |
(mm) |
(mm) |
(mm) (mm) |
(mm) |
(metric) |
|
(mm) |
(kg) |
| 2 |
2.00 50.8 |
2.11 53.6 |
6.00 152.4 |
0.62 15.7 |
4.75 120.7 |
0.75 19.1 |
3.62 91.9 |
7.00 177.8 |
8.50 215.9 |
16.29 413.8 |
13.58 344.9 |
0.75 19.1 |
4 |
5/8 M16 |
11.0 |
8.00 203.2 |
46 21 |
| 2-1/2 |
2.50 63.5 |
2.58 65.5 |
7.00 177.8 |
0.69 17.5 |
5.50 139.7 |
0.75 19.1 |
4.12 104.6 |
7.50 190.5 |
9.50 241.3 |
17.32 439.9 |
14.17 359.9 |
0.75 19.1 |
4 |
5/8 M16 |
12.6 |
8.00 203.2 |
62 28 |
| 3 |
3.00 76.2 |
3.07 78.0 |
7.50 190.5 |
0.75 19.1 |
6.00 152.4 |
0.75 19.1 |
5.00 127.0 |
8.00 203.2 |
11.13 282.7 |
19.68 499.9 |
16.14 410.0 |
0.88 22.2 |
4 |
5/8 M16 |
12.4 |
9.00 228.6 |
77 35 |
| 4 |
4.00 101.6 |
4.09 103.9 |
9.00 228.6 |
0.94 23.9 |
7.50 190.5 |
0.75 19.1 |
6.19 157.2 |
9.00 228.6 |
12.00 304.8 |
24.76 628.9 |
19.84 503.9 |
1.00 25.4 |
8 |
5/8 M16 |
14.8 |
10.00 254.0 |
117 53 |
| 5 |
5.00 127.0 |
5.10 129.5 |
10.00 254.0 |
0.94 23.9 |
8.46 215.0 |
0.87 22.0 |
7.31 185.7 |
10.00 254.0 |
15.00 381.0 |
28.38 720.8 |
22.64 575.0 |
1.13 28.6 |
8 |
3/4 M20 |
20.0 |
14.00 355.6 |
143 65 |
| 6 |
6.00 152.4 |
6.15 156.2 |
11.00 279.4 |
1.0 25.4 |
9.50 241.3 |
0.88 22.4 |
8.50 215.9 |
10.50 266.7 |
15.88 403.4 |
32.80 833.1 |
25.90 657.9 |
1.25 31.8 |
8 |
3/4 M20 |
13.6 |
10.50 266.7 |
207 94 |
| 8 |
8.00 203.2 |
8.15 207.0 |
13.50 342.9 |
1.12 28.4 |
11.75 298.5 |
0.88 22.4 |
10.62 269.7 |
11.50 292.1 |
16.50 419.1 |
40.74 1034.8 |
32.44 824.0 |
1.38 34.9 |
8 |
3/4 M20 |
16.5 |
16.00 406.4 |
348 158 |
| 10 |
10.00 254.0 |
10.20 259.1 |
16.00 406.4 |
1.19 30.2 |
14.25 362.0 |
1.00 25.4 |
12.75 323.9 |
13.00 330.2 |
18.00 457.2 |
50.11 1272.8 |
38.78 985.0 |
1.50 38.1 |
12 |
7/8 M22 |
22.8 |
18.00 457.2 |
524 238 |
| 12 |
12.00 304.8 |
12.24 310.9 |
19.00 482.6 |
1.25 31.8 |
17.00 431.8 |
1.00 25.4 |
15.00 381.0 |
14.00 355.6 |
19.75 501.7 |
58.66 1490.0 |
45.31 1150.9 |
1.63 41.3 |
12 |
7/8 M22 |
26.8 |
20.00 508.0 |
761 346 |
|
|
|
|
