HP-104 High Pressure Hot Tapping Machine

HP-104 Tapping Machine Only

HP-104 High Pressure Pipeline Hot Tapping Machine Compete Package

Qtn:	Part:
1	HP 104 Hot Tapping machine only
1	Packing tool
1	1/4" Needle Valve
1	1/4" Hex Socket Plug
1	1/4" Hex Nipple
1	1/4" Hex Head Bushing
3	D-Clips
1	Ratchet
1	Owners manual
Total	$7,493.19 + Shipping
Qty:
Need additional items to complete your hottap? Items such as pilot drill bits, class 150 lb., 300 lb., and 600lb. ANSI Flanged and Threaded Adaptors? Feel free to call us at 1-800-279-5659 to complete your order or any other support you require.

HP-104 High Pressure Hot Tap Machine Capabilities

Tap into any pipeline system, without a shut down, with our HP-106 hot tap drilling machine. This high pressure machine is operated manually, electrically, or pneumatically for making hot taps 1/2" - 6". Solid drills range from 1/2"-1 3/8" and hole-saw holders are used for 1 1/2” through 6”. The HP-106 is designed to perform hot taps with ease and safety. This model is compatible with IPSCO IP100 drilling machine parts and accessories. Video detailing replacement of the high pressure packing is here:) For more information please feel free to call us at 1-800-279-5659

Designed by Tappers for Tappers
Taps all types of pipe, boat hulls, steel plates, and concrete walls quickly and safely
HP-104 high-pressure machine has 18" of travel
Retains coupon and/or blow off shavings
1/2" - 4 " pressure tap-ins
Pneumatic
Machine Length: 47” without handle and adaptors
Total weight of machine is 38lbs. (without cutters or adapters)
Hand crank provided
Optional electric power drive
Optional air drive for flammable environments
This machine can be used sub sea at working depths
Made in the USA
For more accessories please scroll down the page.

Operating max. pressure:
1440 psi. @ 100° F
Operating temperature:
700° F @ 700 psi. intermittent.
Max. Continuous rating:
350° F @ 1000 psi.

Owners Manual

HP-104 & HP-106 Parts List

See Packing Replacement Video

Multiple drills attached to the HP-104 high pressure tap machine:

Need a Technical Certification of Training?

Recently 2LBin.com sold the HP-104 high pressure hot tapping machine package to a company that also wanted to purchase our Technical Certification of Training via our Hot Tapping Specialists Training Program. The Hot tap was successful, coupon was retained and a completion certificate of training was issued. For more information about our hot tapping machines and services please call 1-800-279-5659.

HP-104 Turn-Key 1/2"-4" Package

Qtn:	Part:
1	HP 104 Tapping machine w/18” of Travel Complete package
1	Packing tool
1	1/4" Needle Valve
1	1/4" Hex Socket Plug
1	1/4" Hex Nipple
1	1/4" Hex Head Bushing
3	D-Clips
1	Ratchet
1	ANSI - ISO Class 150lb 2", 2 1/2", 3" & 4" Adaptors
1	ANSI - ISO Class 300lb 2", 2 1/2", 3" & 4" Adaptors
1	ANSI - ISO Class 600lb 2", 2 1/2", 3" & 4" Adaptors
1	ANSI - ISO Class 600lb 1", 1 1/4", 1 1/2", 2", 2 1/2", 3" & 4" Swage Nipples
1	1 1/8"x 6" Solid Drill
1	1 3/8"x 6" Solid Drill
1	11/16"x 19" Solid Drill
1	7/8"x 19" Solid Drill
1	1/2"x 19" Solid Drill
1	3/8" Insert Bit Short Tip for M Boring Bar
1	3/8" Insert Bit Long Tip for M Boring Bar
1	1 1/2" - 2 3/8" Holesaw Arbor/Mandrel Holder
1	2 1/2" - 3 7/8" Holesaw Arbor/Mandrel Holder
1	3 7/8" - 4 7/8" Holesaw Arbor/Mandrel Holder
1	1 7/8”, 2 3/8”, 2 7/8” & 3 1/2” Single Stack High Speed Steel Cutters
1	Owners manual
Total	$25,460.76 + Shipping
Qty:
Not necessary to purchase complete kits. Feel free to purchase only what you need for the job. Call 1-800-279-5659 and let us assist you with your order today. For more accessories please scroll down the page.

This Tapping Machine Taps:

Asbestos-Cement Pipe
Stainless Steel Pipe
Steel Cylinder Pipe
Carbon Steel Pipe
Ductile Iron Pipe
Cast Iron Pipe
CMLC Pipe
Copper Pipe
PVC Pipe
Polyethylene Pipe
Fiberglass Pipe
Transite Pipe
Metal Walls
Concrete Walls
Steel Plate

High Pressure Line Contents

Crude Oil
Gasoline
Natural Gas
Domestic Water
Reclaimed Water
Potable Water
Chemicals
Wastewater
Sewage
Steam
Chilled Water
Heated Water

High Pressure Hot Tapping Machine (HP-104 and HP-106) Completing a Demo Hottap:

High Pressure Hot Tapping Machine Accessories
ANSI - ISO - Class 150 lbs Flanged adaptors Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Item #	Lengths	Price
Qty:	ADT-150-002	2"	$554.91
Qty:	ADT-150-212	2 1/2"	$717.5
Qty:	ADT-150-003	3"	$856.51
Qty:	ADT-150-004	4"	$979.23
Qty:	ADT-150-006	6"	$1,224.38


ANSI - ISO - Class 300 lbs Flanged adaptors Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Item #	Lengths	Price
Qty:	ADT-300-002	2"	$705.12
Qty:	ADT-300-212	2 1/2"	$912.16
Qty:	ADT-300-003	3"	$1,089.04
Qty:	ADT-300-004	4"	$1,260.69
Qty:	ADT-300-006	6"	$1,589.49


ANSI - ISO - Class 600 lbs Flanged adaptors Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Item #	Lengths	Price
Qty:	ADT-600-002	2"	$853.25
Qty:	ADT-600-212	2 1/2"	$1,117.63
Qty:	ADT-600-003	3"	$1,326.24
Qty:	ADT-600-004	4"	$1,593.84
Qty:	ADT-600-006	6"	$2,060.93


600 lbs Swage Nipples (2"Top Diameter”) Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Bottom	Item #	Price
Qty:	1"	HP-SWGN-2x1	$137.04
Qty:	1 1/4"	HP-SWGN-2x11-4	$137.04
Qty:	1 1/2"	HP-SWGN-2x11-2	$153.04
Qty:	2"	HP-SWGN-2x2	$161.2
Qty:	2 1/2"	HP-SWGN-2x21-2	$169.04
Qty:	3"	HP-SWGN-2x3	$239.6
Qty:	4"	HP-SWGN-2x4	$303.92
Qty:	6"	HP-SWGN-2x6	$553.20


Pilot Drill Shafts, Threaded Insert Tips, Solid Bits, and D-Clips
3/8" Pilot Drill Insert Tip Threaded for M-type Boring Bar Short (1- retainer wire – L 1 1/4” - Flute length 3/4”) Long (2- retainer wire – L 1 7/8” - Flute length 3/4”) Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Specs	Item #	Price
Qty:	3/8" Insert Bit Short Tip for M Boring Bar	T1P-0540-RRW	$193.52
Qty:	3/8" Insert Bit Long Tip for M Boring Bar	T1P-0740-RRW	$225.52
Wire diameter .051 = 1.295 mm


1 7/8" - 8 "Holesaw Arbor and Mandrel Holder (3/8" pilot drill insert tip is not included”) Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Specs	Item #	Price
Qty:	1 7/8" - 2 3/8" Taps Holesaw Arbor/Mandrel Holder Requires single stack bi-metal or carbide holesaws	2-HSPD-106	$536.00
Qty:	2 1/2" - 3 7/8" Taps Holesaw Arbor/Mandrel Holder Requires single stack bi-metal or carbide holesaws	3-HSPD-106	$553.20
Qty:	3 7/8" - 4 7/8" Taps Holesaw Arbor/Mandrel Holder Requires double stack bi-metal or carbide holesaws	4-HSPD-106	$584.00
Qty:	6" - 8" Taps Holesaw Arbor/Mandrel Holder Requires double stack bi-metal or carbide holesaws	6-HSPD-106	$616.00
Wire diameter .051 = 1.295 mm


Solid Pilot Drill Bits Solid Drills For HP-104 & HP-106 High Pressure Tapping Machines 6” Long - Drilling Travel same as Machine Capability
	Specs	Item #	Price
Qty:	1 1/8"x 6" Solid Drill	HP-1-1-8x6SD	$545.60
Qty:	1 3/8"x 6" Solid Drill	HP-1-3-8x6SD	$680.00

Qty:	11/16"x 19" Solid Drill	HP-11-16x19SD	$913.20
Qty:	7/8"x 19" Solid Drill	HP-7-8x19SD	$1,088.00
Qty:	1/2"x 19" Solid Drill	HP-1-2x19SD	$833.20
Wire diameter .051 = 1.295 mm


HP Packing Replacement Kit Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines See Packing Replacement Video
Specs	Item #	Price
HP Packing Replacement Kit	HP-PACK-1131	$57.60
Qty:

D-Clips for High Pressure Hottap Machines Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
3 x D-Clip	HP-Dclip	$30.32
Qty:

12"Ratchet Drive Assembly Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
12"HP Ratchet	HNDL-21-83712	$287.20
Qty:

2lbin High Pressure Tap Machine Packing tool Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Packing Tool	HP-PK-Tool	$521.04
Qty:

High Pressure Hot Tapping Machine Parts and Accessories:
High Pressure Machine Feed Tubes Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Specs	Item #	Price
Qty:	HP-104 Feed Tube	HP-FT-104	$2,368.00
Qty:	HP-106 Feed Tube	HP-FT-106	$2,608.00


High Pressure 104/106 Brass Split Bushing Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Brass Split Bushing	HP-BSB	$176.00
Qty:

Main High Pressure Body Tube Body Tubes For HP-104 & HP-106 High Pressure Tapping Machines
	Specs	Item #	Price
Qty:	HP-104 Main Body Tube	HPMBT-104	$3,793.20
Qty:	HP-106 Main Body Tube	HPMBT-106	$4,048.00


High Pressure Boring Bar Main Boring Bars For HP-104 & HP-106 High Pressure Tapping Machines
	Specs	Item #	Price
Qty:	HP-104 Boring Bar	HP-BB-104	$1,240.00
Qty:	HP-106 Boring Bar	HP-BB-106	$1,408.00


HP-104/106 Rear Retention Nut Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Rear Retention Nut	HP-RRN	$304.00
Qty:

Hex Head Bushing 6000PSI Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Bushing 6000 PSI	HP-Hex Bushing	$7.23
Qty:

Retention Nut Set Screws Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
Retention Nut Set Screws	HP-RNSS	$1.60
Qty:

Brass Pellet Rear Retention Nut Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Brass Pellet	HP-RRN-BP	$8.00
Qty:

2lbin High Pressure Snap Ring Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Snap Ring	HP-SR	$3.20
Qty:

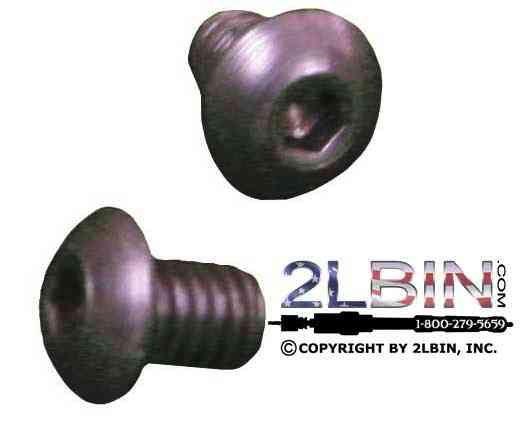

Allen Head Split Bushings Screws Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
Allen Head Split Bushings Screws	HP-BSB-CS	$2.40
Qty:

High Pressure Needle Valve Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
	Specs	Item #	Price
Qty:	HP Needle Valve	HP-1/4” Needle Valve	$181.76
Qty:	HP-104/106 Nipple 1/4”	HP-Nipple	$24.32


HP-Hex Socket Plug Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-Hex socket plug	HP-104/106 pipeplug	$1.73
Qty:

HP-104/106 Brass Packing Nut Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Brass Packing Nut	HP-BPN	$156.80
Qty:

HP-104/106 Cap and Bearing Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines
Specs	Item #	Price
HP-104/106 Cap and Bearing	HP-C/B	$156.80
Qty:

Air Drive Drill Gun Compatible with HP-104 and HP-106 High Pressure Hot Tapping Machines Air supply Requirements :Air Pressure- 90 p.s.i.g (6.2 bar) Air Filtration- 50 micron, Lubricated Air Supply and a Hose size of 5/16 (8mm) I.D.
Specs	Item #	Price
Air Drive Drill Gun	HP- AirDriveG	$2,080.00
Qty:

Bi Metal High Speed Steel Hole Saws High-speed steel cutting edge provides shock resistant teeth and resists tooth strippage. 4/6 positive tooth configuration allows for fast, smooth cuts and less vibration. Packaged in individual boxes. Features: 4/6 variable tooth configuration 1 7/8" (48 mm) depth of cut 3/16" (5 mm) thick heavy-duty backing plate eliminates need for drive plate The 5 1/2" Double Stack Cutter has 3.25"-3.50" Cutting Depth Application information: Creates holes for pipe and tubing installations, door lock installations, electrical conduits, hoses, and antennas. Ideal for plumbing, construction, aircraft, electrical, maintenance, and automotive applications. Use in steel, aluminum, brass, cast iron, plastic, or wood
	Item #	Specs	Price
Qty:	BM-514-780	7/8” Single Stack Cutter	$18.91
Qty:	BM-518-118	1 1/8” Single Stack Cutter	$20.54
Qty:	BM-522-138	1 3/8” Single Stack Cutter	$21.26
Qty:	BM-530-178	1 7/8” Single Stack Cutter	$26.26
Qty:	BM-538-238	2 3/8” Single Stack Cutter	$30.91
Qty:	BM-546-278	2 7/8” Single Stack Cutter	$34.70
Qty:	BM-556-312	3 1/2” Single Stack Cutter	$42.62
Qty:	BM2-050-140	5 1/2” Double Stack Cutter	$413.92
Need more sizes? Click here


Carbide Tipped Hole Saws Carbide tips allow for greater heat and wear resistance than bi-metal tips, provide up to 10 times greater tool life on abrasive materials, and come packaged in individual boxes. Features: 3/16" (5 mm) thick heavy-duty backing plate eliminates the need for drive plate 3 teeth per inch for aggressive cutting. 1 5/8" (41 mm) depth of cut The 5 1/2" Double Stack Cutter has 3.25"-3.50" Cutting Depth Application information: Ideal for plumbing, marine, and aircraft applications. Use in wood laminates, fiberglass, plywood, and tile.
	Item #	Specs	Price
Qty:	CT-14-780	7/8” Single Stack Cutter	$31.15
Qty:	CT-18-118	1 1/8” Single Stack Cutter	$38.54
Qty:	CT-22-138	1 3/8” Single Stack Cutter	$43.34
Qty:	CT-30-178	1 7/8” Single Stack Cutter	$56.85
Qty:	CT-38-238	2 3/8” Single Stack Cutter	$71.78
Qty:	CT-42-278	2 7/8” Single Stack Cutter	$81.38
Qty:	CT-56-312	3 1/2” Single Stack Cutter	$105.12
Qty:	CT2-050-120	5 1/2” Double Stack Cutter	$472.00
Need more sizes? Click here
