Hot Tapping Machines Designed by Tappers for Hot Taps

2LBin.com has been developing and manufacturing hot tap and linestop machines for over 35+ years. Built with experience, through continual usage in the field, our equipment will complete any tap within its specifications.

LJ1-25 LouieJR Hot Tap Machine
Click for more information
LJ1-25 LouieJR Hot Tap Tapping Machine
The LouieJR Tapping machine has been designed and manufactured for rugged service; requiring a minimum amount of maintenance.
  • Hand operated or power driven.
  • Full 11" of travel
  • 3/4” - 2” hot taps on most types of products
  • “Quick change” of 1” and 2” boring bars - No confusing parts
  • Total weight with adapter - 14 lbs
  • Compatible with 1” - 2 1/2” line stopping
  • American std & British std adaptors
  • Made in USA
  •
    T1-2 Hot Tap Machine
    Click for more information
    T1-2 Hot Tap Tapping Machine
    The T1-2 Tapping machine consists of a 3 rail frame in which a drive unit slides and operates off a grounded 115 VAC electrical outlet through a ground fault interrupt plug, similar to the T1-4. Behind the drive motor, the feed assembly slides and locks into place. The packing housing, consisting of 2 O-rings, at the opposite end of the feed assembly, seals around different length boring bars, depending on the travel needed to complete the tap. Different size adaptors screw on to the machine which are sealed by a existing O-ring for convenient size changes.
  • Plugs into standard 110 outlet
  • Built-in drive unit
  • Taps all types of pipe quickly & safely
  • 3/4-2" pressure taps-ins
  • 3/4-2" Compatible with line stopping
  • Total weight T-1 28lbs.
  • Made in USA
  •
    T1-4 Hot Tap Machine
    Click for more information
    T1-4 Hot Tap Tapping Machine
    The T1-4 Tapping machine consists of a 3 rail frame in which a drive unit slides and operates off a grounded 115 VAC electrical outlet through a ground fault interrupt plug, similar to the T1-2. Behind the drive motor, the feed assembly slides and locks into place. The packing housing, consisting of 2 O-rings, at the opposite end of the feed assembly, seals around different length boring bars, depending on the travel needed to complete the tap. Different size adaptors screw on to the machine which are sealed by a existing O-ring for convenient size changes.
  • Plugs into standard 110 outlet
  • Built-in drive unit
  • Taps all types of pipe quickly & safely
  • 3/4-4" pressure taps-ins
  • 3/4-4" Compatible with line stopping
  • Total weight T-1 28lbs.
  • Made in USA
  •
    T1-4 Hot Tap Machine
    Click for more information
    T1-Air Drive Hot Tap Tapping Machine
    The T1-A Tapping machine consists of a 3 rail frame in which the drive unit slides and operates off a 3/4 Horsepower Cleco Air Motor, requiring 90 – 100 PSI air pressure through a minimum 3/8” I.D. hose to create a spindle speed of 225 RPM. Behind the drive motor, the feed assembly slides and locks into place. The packing housing, consisting of 3 O-rings, at the opposite end of the feed assembly, seals around different length boring bars, depending on the travel needed to complete the tap. Different size adaptors screw on to the machine which are sealed by an existing O-ring for convenient size changes.
  • Designed by Tappers for Tappers
  • Airdrive motor
  • Built-in drive unit
  • Taps all types of pipe quickly & safely
  • 3/4-4" pressure taps-ins
  • 3/4-4" compatable for line stopping
  • Total weight T-1 A 35lbs.
  • Made in the USA
  •

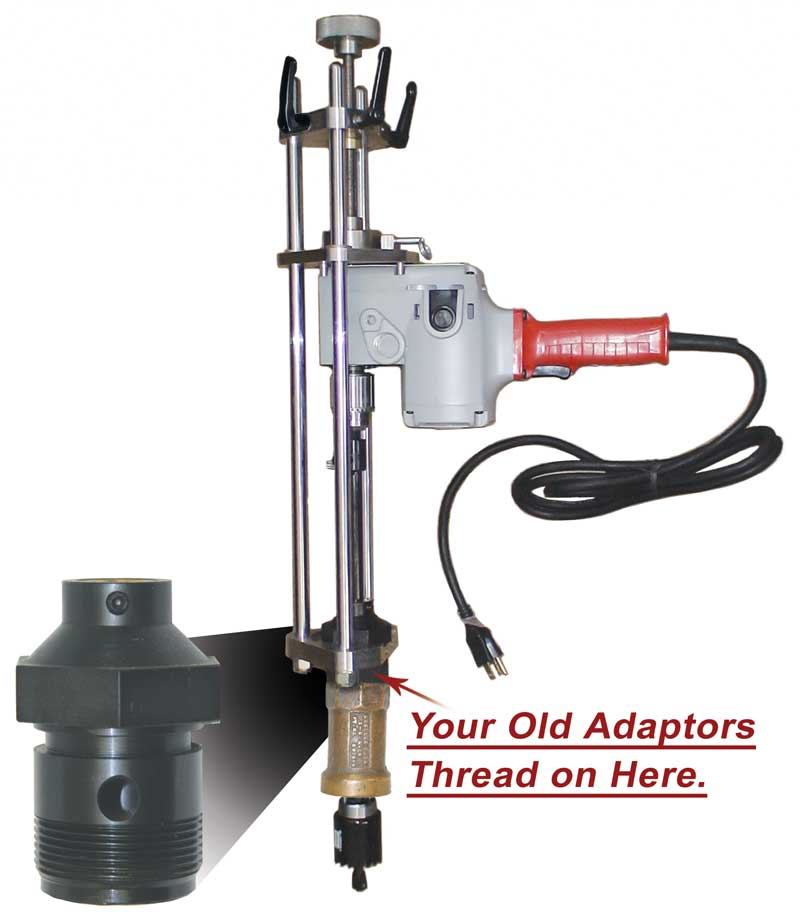

    T1M Hot Tap Machine
    Click for more information
    T1M Hot Tap Tapping Machine
    The T1M Tapping machine is a light weight piece of field equipment that will perform “pressurized” drilling operations on pipelines and tanks. The M stands for T1-M Adaptable. This part allows you to use all your Muller adaptors with this machine
  • Plugs into standard 110 outlet
  • Built-in drive unit
  • Taps all types of pipe quickly and safely
  • 1" - 4" pressure tap-ins
  • Total weight T1M = 28 lbs.
  • Mates to your T1-M
  • Optional D4 or E series conversion
  • Made in USA
  •
    T1M Hot Tap Machine
    Click for more information
    T1-8 Hot Tap Tapping Machine
  • Designed by Tappers for Tappers
  • Milwaukee Super hawg electric drive motor
  • Taps all types of pipe and concrete walls quickly and safely
  • 4" - 8" pressure tap-ins
  • Total weight of machine- 55 lbs. (without cutters or adapters)
  • Heavy duty Gear reduction transmission
  • Adapters available in steel or aluminum
  • Up to 41" of travel and custom length boring bars are available for longer travel applications.
  • Made in USA

  •
    HP-104 Hot Tap Machine
    Click for more information
    High Pressure - 104 Hot Tap Tapping Machine
    Manual or power driven high pressure tapping machine that taps into high pressure pipe. Provides means to plug tapped opening. The HP-104 Tapping Machines have been designed for rugged service and require a minimum amount of maintenance.
  • HP-104 high pressure machine has 18" of travel
  • Taps all types of pipe quickly and safely
  • 1/2" - 4 " pressure tap-ins
  • Total weight of machine- 38lbs.(without cutters or adapters )
  • Hand crank provided (optional electric power drive)
  • Optional air drive for flammable environments
  • Made in USA
  •
    HP-106 Hot Tap Machine
    Click for more information
    High Pressure-106 Hot Tap Tapping Machine
    Manual or power driven high pressure tapping machine that taps into pipe. Provides means to plug tapped opening. The HP-106 Tapping Machines have been designed for rugged service and require a minimum amount of maintenance.
  • HP-106 high pressure machine has 28" of travel
  • Taps all types of pipe quickly and safely
  • 1/2" - 6" pressure tap-ins
  • Total weight of machine- 85lbs. (without cutters or adapters )
  • Hand crank provided (optional electric power drive)
  • Optional air drive for flammable environments
  • Made in USA
  •
    T-24E Hot Tap Machine
    Click for more information
    T-24E Hot Tap Tapping Machine
    The T-24E Tapping machine is designed for hot tapping while the existing pipeline is pressurized. Various cutter housings and cutter sizes and can be exchanged onto the tapping machine to perform a wide array of pipeline services including hot tapping and line stopping.
  • Electric drive unit for portability
  • Taps all types of pipe quickly & safely
  • 3"-8" pressure taps-ins
  • Total weight of machine-110 lbs. (without cutters or adapters)
  • Adapters available in aluminum or steel
  • Made in USA
  •
    T-30 Hot Tap Machine
    Click for more information
    T-30H Hot Tap Tapping Machine
    The IFT T-30 Tapping Machine consists of a 3-rail body frame, a hydraulic power drive to rotate the boring bar, and a feed screw to advance and retract the cutting mechanism. The power drive on the T-30H operates the cutting saw. The advancement and retraction of the boring bar is performed manually. The boring bar uses a sealing member consisting of O-rings to keep pipeline product from escaping.
  • Very powerful built in drive unit
  • Taps all types of pipe quickly and safely
  • 3" - 12" pressure tap-ins
  • 3" - 12" Compatible with line stopping
  • Total weight of machine- 125 lbs (without cutters or adapters)
  • Adapters available in steel or aluminum
  • American std & British std adaptors
  • Optional air drive for flammable environments
  • Made in USA
  •
    T-37 Hot Tap Machine
    Click for more information
    T-37 Hot Tap Tapping Machine
    The T-37 Tapping machine is designed for hot tapping while the existing pipeline is pressurized. Various cutter housings and cutter sizes can be exchanged onto the tapping machine to perform a wide array of pipeline services including hot tapping and line stopping.
    • Very powerful built in drive unit
  • Taps all types of pipe quickly and safely
  • 3" - 16" pressure tap-ins for Municipal pipe applications
  • 3" - 12" pressure tap-ins for chilled carbon
  • 3" - 16" Compatible with line stopping
  • Total weight of machine- 185 lbs. (without cutters or adapters )
  • Adapters available in steel or aluminum
  • American std & British std adaptors
  • Made in USA
  •
    T-30AirDrive Hot Tap Machine
    Click for more information
    T-30Air Drive Hot Tap Tapping Machine
    The IFT T-30A Tapping Machine consists of a 3-rail body frame, a power air drive to rotate the boring bar, and a feed screw to advance and retract the cutting mechanism. The power drive on the T-30A operates the cutting saw. The advancement and retraction of the boring bar is performed manually. The boring bar uses a sealing member consisting of O-rings to keep pipeline product from escaping.
  • Very powerful built in air drive unit
  • This Air Motor should be operated at 90 psig (6.2 bar/ 620 kPa) air pressure at the inlet with 1/4” (6mm) air supply hose.
  • Operator Handle is a Detented Type F 4 way – 3 position valve with 1/2” NPT ports.
  • Taps all types of pipe quickly and safely
  • 3" - 12" pressure tap-ins
  • 3" - 12" Compatible with line stopping
  • Total weight of machine- 125 lbs (without cutters or adapters)
  • Adapters available in steel or aluminum
  • American std & British std adaptors
  • Made in USA
  •
    T-37Air Drive Hot Tap Machine
    Click for more information
    T-37Air Drive Hot Tap Tapping Machine
    The T-37A Tapping machine is designed for hot tapping while the existing pipeline is pressurized. Various cutter housings and cutter sizes can be exchanged onto the tapping machine to perform a wide array of pipeline services including hot tapping and line stopping.
  • Very powerful built in air drive unit
  • This Air Motor should be operated at 90 psig (6.2 bar/ 620 kPa) air pressure at the inlet with 1/4” (6mm) air supply hose.
  • Operator Handle is a Detented Type F 4 way – 3 position valve with 1/2” NPT ports.
  • Taps all types of pipe quickly and safely
  • 3" - 16" pressure tap-ins for Municipal pipe applications
  • 3" - 12" pressure tap-ins for chilled carbon
  • 3" - 16" Compatible with line stopping
  • Total weight of machine- 185 lbs. (without cutters or adapters )
  • Adapters available in steel or aluminum
  • American std & British std adaptors
  • Made in USA
  •
    T46+ "Big Louie" Hot Tap Machine
    Click for more information
    T46+ "Big Louie" Hot Tap Tapping Machine
  • This tapping machine has 46” of travel and performs taps 12” – 24”.
  • Travel can be increased if desired to 60” with the “T46-60 Rail and Boring-bar” package
  • Very powerful built in drive unit
  • Weight approx 500lbs
  • Tapping machine is hydraulic driven: 16 gallons at 2000 psi. is preferred
  • Machine has patented “Selectable-feed” 1 – speed for advancing and 1 - speed for cutting.
  • 3” Boring Bar for ridged cutting
  • Gear driven for precision cutting and dependability
  • Dual Hydraulic motor drive for non-stop cutting
  • T1-M style cutters bolt up with use of an adapter
  • 285 psi. working pressure with quoted adaptors.
  • 285psi & 250 degrees (F) with provided packing, higher temperatures are available with optional packing
  • American std & British std adaptors
  • Made in USA
  •
    T60 Hot Tap Machine
    Click for more information
    T-60 Hydraulic Hot Tapping Machine
  • Designed by Tappers - for Tappers
  • This machine has 60” of travel and performs taps 12” – 36" or 300mm - 900mm taps
  • Very powerful built in drive unit
  • Tapping machine is hydraulic driven: 18 gallons at 2000 psi. is preferred.
  • Machine has patented “Selectable-feed”; 1 speed - for advancing and 1 speed - for cutting
  • 3 1/2” Boring Bar for ridged cutting.
  • Gear driven for precision cutting and dependability
  • Dual hydraulic motor drive for non-stop cutting
  • 300 psi. working pressure with quoted adaptors.
  • 300psi & 100 degrees (F) with provided packing, Higher Temperatures are available with optional packing.
  • British Standards Available
  • Machine weight is approx 795 lbs.
  • Made in the USA
  •


    Click for more information
    "Super Louie" Hot Tap Tapping Machine
  • This HUGE tapping machine has 74"-112” of travel and performs taps 24” – 60”
  • Weight approx. 4000lbs
  • Travel can be increased to 112” or more with “T112 Rail and Boring-bar” package
  • Very powerful built in drive unit
  • Tapping machine is hydraulic driven
  • Machine has patented “Selectable-feed” 1 – speed for advancing and 1 speed – for cutting
  • 5 1/2” Boring Bar and four 3 1/2" support rails for ridged cutting
  • Gear driven for precision cutting and dependability
  • Dual - quad hydraulic motor drives for non-stop cutting
  • T1-M style cutters bolt up with use of an adapter
  • 285 psi. working pressure with quoted adaptors
  • 285psi & 250 degrees (F) with provided packing, higher temperatures are available with optional packing
  • American std & British std adaptors
  • Made in USA
  •

    Leave us a Facebook Comment

    Customer Service

    • Return Policy
    • Product Warranty
    • Contact Us
    • Customer Support

    Company Info

    • About Us
    • Location
    • Customer Feedback
    • Online Flip Catalog
    • Emergency Response
    • Training

    Company Policies

    • Privacy Policy
    • 2LBin Policies
    Copyright 2LBin.com / ToolBin.com
    facebook youtube twitter google linkedin
