14" - 48" Resilient Seated Gate Valves

Clow Valve Company's full line of resilient wedge gate valves, 14" - 48", are suitable for the water and wastewater field. These valves add to the most complete valve line in the waterworks industry today.

West coast and East coast shipping location for lower shipping rates.

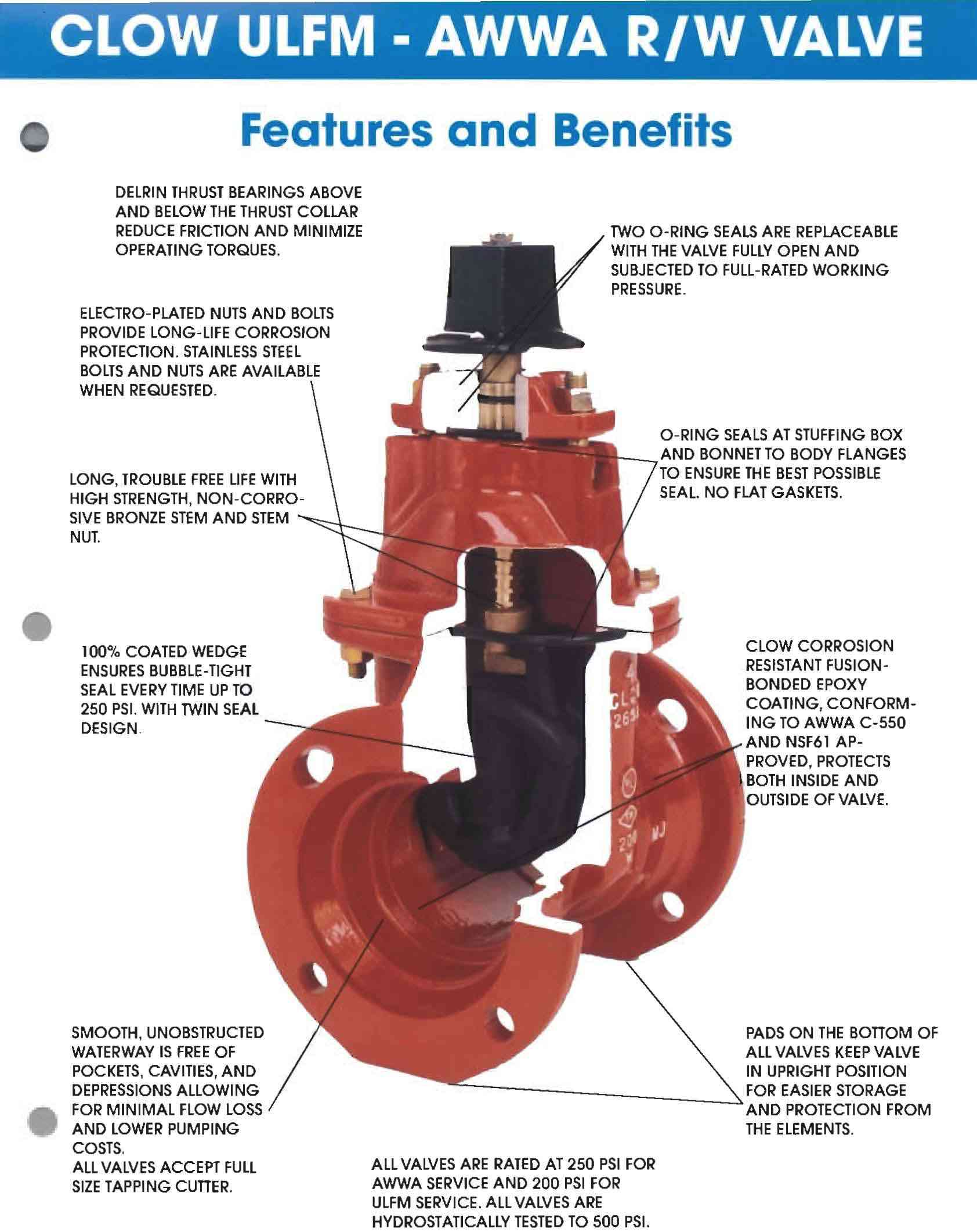

Recommended Specifications

Valves shall be either non-rising stem or rising stem, opening by turning stem left or right and provided with 2" square operating nut or handwheel with the word 'open' and an arrow cast in the metal to indicate direction to open.

The wedge shall be of ductile iron completely encapsulated with rubber.

The sealing rubber shall be permanently bonded to the cast iron wedge to meet ASTM tests for rubber metal bond ASTM D249.

Valves shall be supplied with o-ring seals at all pressure retaining joints. No flat gaskets allowed.

Stems for NRS assemblies shall be cast bronze with integral collars in full compliance with AWWA. OS&Y stems shall be bronze. The NRS stem stuffing box shall be the o-ring seal type with two o-rings located above thrust collar and one o-ring below. The two o-rings above the thrust collar shall be replaceable with valve fully open and subjected to full rated working pressure.

There shall be two low torque thrust bearings located above and below the thrust collar. The stem nut shall be independent of the wedge and shall be made of solid bronze. There shall be a smooth, unobstructed waterway free of all pockets, cavities and depressions in the seat area.

The body and bonnet shall be coated with fusion bonded epoxy both interior and exterior, complying with AWWA C-550 and be NSF 61 approved. Each valve shall have maker's name, pressure rating and year in which manufactured cast on the body. Prior to shipment from the factory, each valve shall be tested by hydrostatic pressure equal to AWWA (twice the specified working pressure) requirements.
