This product has been discontinued and is not available...

TEK-RAP 200-LOW VOC LIQUID ADHESIVE COATING

  • TEK-RAP 200-LOW VOC SERIES LIQUID ADHESIVE COATING is a rubber based coating recommended for steel pipe that has been properly prepared by dry abrasive blasting or wire brushing.
  • The TR 200-LOW VOC is specially formulated to comply with strict air quality regulations.
  • TEK-RAP LIQUID ADHESIVE COATING is applied immediately prior to application of the Inner Layer.

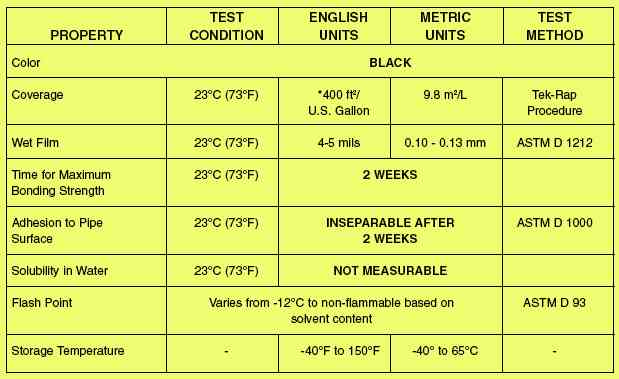

TYPICAL PROPERTY VALUES

TEK-RAP 200-LOW VOC LIQUID ADHESIVE COATING  PROPERTY VALUES
We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.
*Actual coverage may vary with method of application. Customer should s

TEK-RAP 200-LOW VOC LIQUID ADHESIVE COATING



TEK-RAP CORROSION PROTECTION OF DUCTILE IRON PIPE



TEK-RAP CORROSION PROTECTION OF DUCTILE IRON PIPE

It has been believed for years by corrosion engineers that ductile iron pipe does not corrode at the same rate as steel pipe. This belief is primarily based on the assumption that ductile iron pipe corrodes slower than steel pipe because steel pipe generally contains less carbon than ductile pipe.

While it may be true that ductile pipe usually corrodes slower than steel pipe, this is assuming that the carbon is uniformly distributed and that potential corrosive hot spots do not exist. Recently, this assumption has been found to be untrue. In fact, several recent pipeline failures of ductile iron have indicated that corrosive hot spots can exist which corrode at the same rate if not faster than steel pipe.

Earlier arguments against conventional coatings being used to coat ductile iron pipe was due to the dimple peened surface of D.I. pipe. The adhesive of conventional coatings did not contact the pipe surface, leaving air pockets or voids under the coating which subsequently could corrode. Earlier tapes were constructed of adhesives which were hard and did not extrude or migrate into these surface dimples. The TEK-RAP System allows the Inner Layer, which is in contact with the entire pipe surface, to extrude or mold into these surface irregularities and completely bond to the pipe surface. The TEK-RAP Co-Extruded Ductile Iron Coating System is designed to obtain 100% surface adhesion and corrosion protection.

The TEK-RAP System contains stabilizers designed to resist destructive effects of ultraviolet light and soil oxidation

The TEK-RAP System contains stabilizers and inhibitors designed to resist destructive effects of ultraviolet light and soil oxidation to the polyethylene backing. Ultraviolet light deterioration to the polyethylene backing can begin if the coated D.l. pipe is left in a coating plant storage yard or uncovered in an open burial. This can cause unstabilized polyethylene to deteriorate and lose its effective strength attributes within just a few years service. TEK-RAP products are so reliable that we offer them with the industry's only 40 year guarantee when installed under TEK-RAP supervision, resulting in drastically reduced maintenance costs.





TEK-RAP 200 SERIES LIQUID ADHESIVE COATING

TEK-RAP 200 SERIES LIQUID ADHESIVE COATING is a rubber based coating recommended for steel pipe that has been properly prepared by dry abrasive blasting or wire brushing. TEK-RAP LIQUID ADHESIVE COATING is applied immediately prior to application of the Inner Layer.

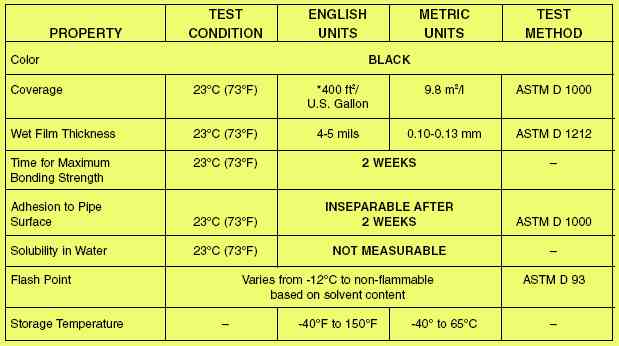

TYPICAL PROPERTY VALUES

TEK-RAP 200 SERIES LIQUID ADHESIVE COATING PROPERTY VALUES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.
*Actual coverage may vary with method of application. Customer should specify method of application at time of inquiry.

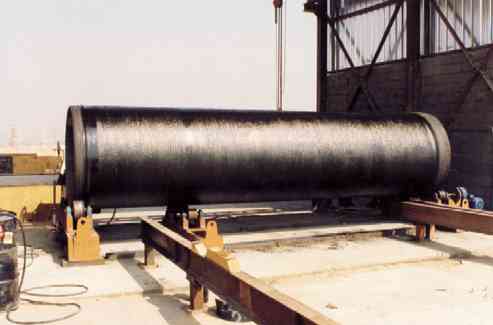

TEK-RAP 250 DUCTILE IRON SERIES INNER LAYER SPECIALLY DESIGNED FOR IN-PLANT AND OVER-THE-DITCH APPLICATIONS

TEK-RAP 250 Dl SERIES is a two component co-extruded coating consisting of polyethylene and butyl rubber adhesive. This specially designed Inner Layer conforms to the irregular dimensions of ductile iron pipe allowing the Inner Layer to come in contact with the pipe surface for a total bond. Below properties are based on a 20 mil Inner Layer.

PRODUCT PHYSICAL PROPERTIES

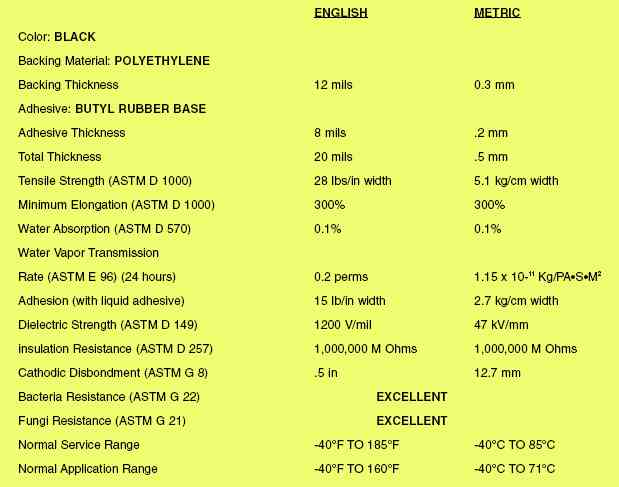

TEK-RAP 250 DUCTILE IRON SERIES PHYSICAL PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.



TEK-RAP 250 DUCTILE IRON SERIES INNER LAYER SPECIALLY DESIGNED FOR IN-PLANT AND OVER-THE-DITCH APPLICATIONS

TEK-RAP 250 Dl SERIES is a two component co-extruded coating consisting of polyethylene and butyl rubber adhesive. This specially designed Inner Layer conforms to the irregular dimensions of ductile iron pipe allowing the Inner Layer to come in contact with the pipe surface for a total bond. Below properties are based on a 25 mil Inner Layer.

PRODUCT PHYSICAL PROPERTIES

TEK-RAP 250 DUCTILE IRON SERIES PHYSICAL PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.



TEK-RAP 255 DUCTILE IRON SERIES OUTER LAYER SPECIALLY DESIGNED FOR IN-PLANT AND OVER-THE-DITCH APPLICATIONS

TEK-RAP 255 Dl SERIES is a co-extruded outer covering of polyethylene and butyl rubber. It provides mechanical protection to the Inner Layer from potential hazards due to back-fill operations and soil stresses; as well as protection from chemical and biological attack. Material is available in various thicknesses. Below properties are based on a 30 mil Outer Layer.

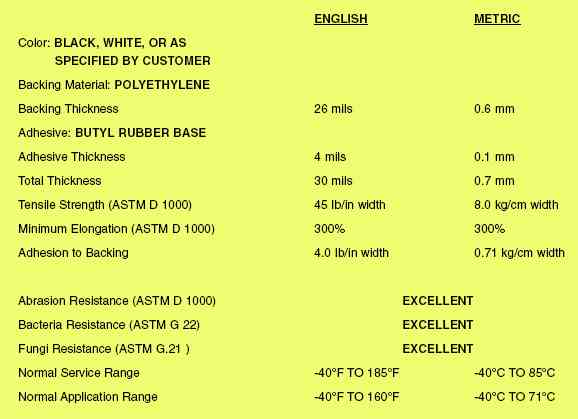

PRODUCT PHYSICAL PROPERTIES

TEK-RAP 255 DUCTILE IRON SERIES PHYSICAL PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.

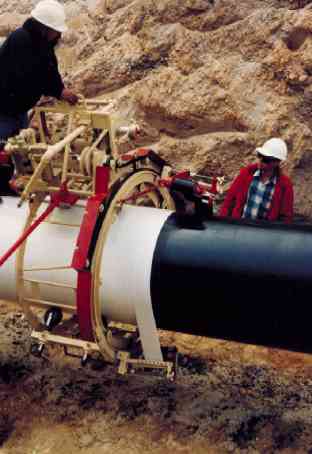

TEK-RAP 240 SERIES PIPELINE INNER LAYER FOR OVER-THE-DITCH APPLICATION

TEK-RAP 240 SERIES is a two component co-extruded coating consisting of polyethylene and butyl rubber adhesive. It provides lifetime protection from corrosion for buried and submarine steel pipelines. Material is available in various thicknesses. Below properties are based on a 25 mil Inner Layer.

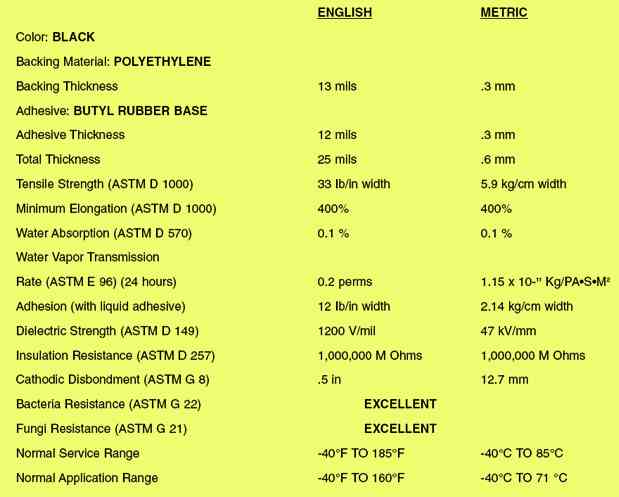

PRODUCT PHYSICAL PROPERTIES

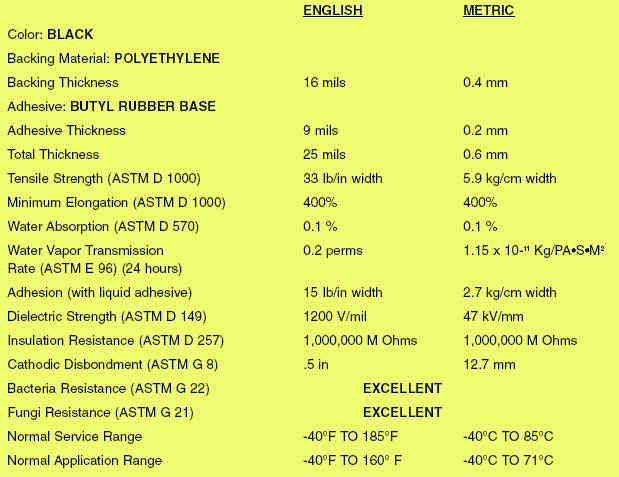

TEK-RAP 240 SERIES PIPELINE PRODUCT PHYSICAL PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.



TEK-RAP 260 SERIES PIPELINE OUTER LAYER FOR OVER-THE-DITCH APPLICATION

TEK-RAP 260 SERIES is a co-extruded outer covering of polyethylene and butyl rubber. It provides mechanical protection to the Inner Layer from potential hazards due to back-fill operations and soil stresses; as well as protection from chemical and biological attack. Material is available in various thicknesses. Below properties are based on a 25 mil Outer Layer.

PRODUCT PHYSICAL PROPERTIES

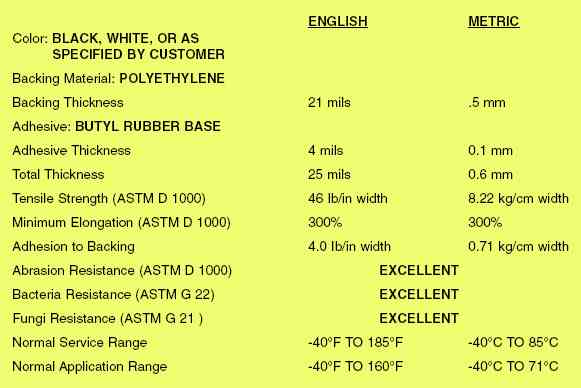

TEK-RAP 260 SERIES PIPELINE PRODUCT PHYSICAL PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.

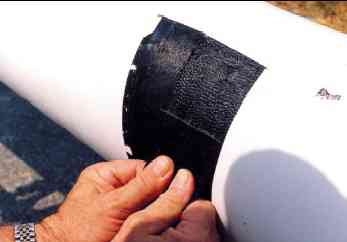

TEK-RAP 281 SERIES SELF-ADHESIVE JOINT COATING FOR HAND APPLICATION

TEK-RAP 281 CO-EXTRUDED SELF-SEALING/PRESSURE SENSITIVE JOINT COATING is a cold applied conformable coating consisting of polyethylene backing and butyl rubber adhesive. The butyl adhesive is an extremely aggressive formulation promoting the strongest cohesive overlap bonding of any present polyethylene joint tape in the market. It provides excellent conformability for field joints, ells, tees, valves, patch and repair and other pipe fittings. Material is available in various thicknesses. Below properties are based on a 35 mil coating.

PRODUCT PHYSICAL PROPERTIES

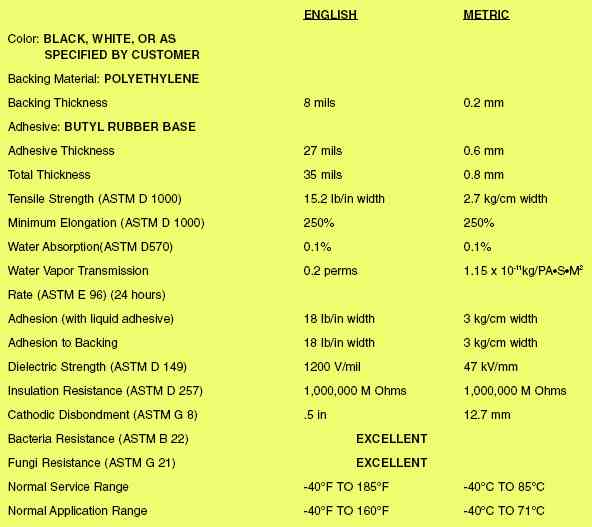

TEK-RAP 281 SERIES SELF-ADHESIVE JOINT COATING PRODUCT PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.



TEK-RAP 281 SERIES SELF-ADHESIVE JOINT COATING FOR HAND APPLICATION

TEK-RAP 281 CO-EXTRUDED SELF-SEALING/PRESSURE SENSITIVE JOINT COATING is a cold applied conformable coating consisting of polyethylene backing and butyl rubber adhesive. The butyl adhesive is an extremely aggressive formulation promoting the strongest cohesive overlap bonding of any present polyethylene joint tape in the market. It provides excellent conformability for field joints, ells, tees, valves, patch and repair and other pipe fittings. Material is available in various thicknesses. Below properties are based on a 35 mil coating.

PRODUCT PHYSICAL PROPERTIES

TEK-RAP 281 SERIES SELF-ADHESIVE JOINT COATING PRODUCT PROPERTIES

We follow and comply with AGA, ANSI, ASTM, API, NACE*, NAPCA*, AWWA, and other International Standards.
