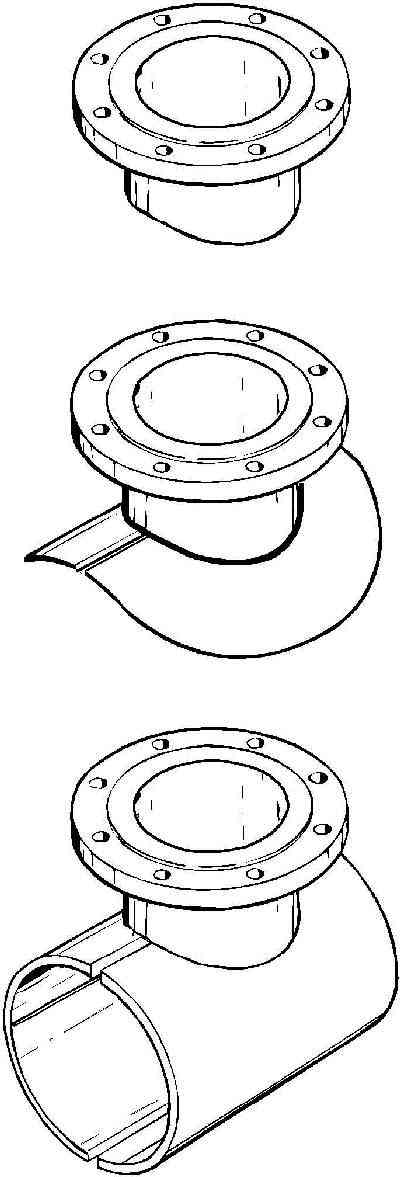

Series 510 Tapping Outlets
Series 510 outlets are available in 150 lb., 300 lb., 600 lb. and 900 lb. flange ratings through 144". The flange is available in flat face or raised face depending upon your application. The outlet neck is fabricated of non seamed carbon steel pipe which is contoured to match your existing pipeline. c 510 for non lined outlets c 512 for mortar lined outlets c 514 for fusion epoxy Add an (L) after series # for 300lb. flange

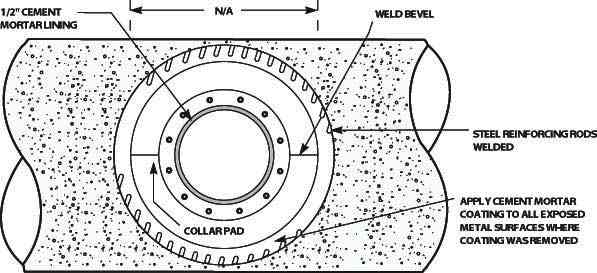

Series 520 Tapping Outlets
Series 520 outlets are fabricated to meet the Series 510 specifications and in addition include a weld collar to help distribute weights that may be encountered on thin walled pipelines.

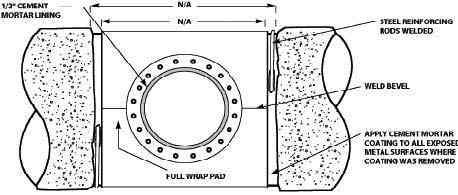

Series 530 Tapping Outlets
Series 530 outlets are fabricated to meet the series 510 specifications and in addition include a full wrap to distribute weights that may be encountered on thin walled pipelines or where excessive weights may be introduced.
Call for Price and orders: 1-800-279-5659
