This Machine Works! Designed light to maneuver, built smart to perform Don’t be Caught short! Full 12” of travel
Competitors don’t have enough travel to satisfy
Total Control of Travel for Safety
Positive Retention of Coupons Minimize Coupon loss
Designed by Tappers for Tappers
Hand operated or power drive.
Full 12" of travel
3/4” - 2” hot taps on most types of products
“Quick change” of 1” and 2” Boring bars no confusing parts
Total weight with adapter 14 lbs
Compatible with 1” - 2 1/2” line stopping
American std & British std, adaptors
Replacement and additional parts in stock
Support to our customers by trained tapping personnel
Drive motor 110V, Back plate w/ spacers for T1A Drive motor, Large chuck wrench for securing boring bar, GFI electrical protection relay, Packing adaptor housing, Packing assembly , O-rings standard temperatures, Feed Screw assembly
Designed by Tappers for Tappers
Plugs into standard 110 outlet
Built-in drive unit
Taps all types of pipe quickly & safely
3/4-2" pressure taps-ins
3/4-2" compatible for line stopping
Total weight T-1 28lbs.
Operating max pressure 300psi@ 100°F (std.packing)
T1-2 tapping machine w/ electric 110V drive unit
Drive motor 110V, Back plate w/ spacers for T1A Drive motor, Large chuck wrench for securing
boring bar, GFI electrical protection relay, Packing adaptor housing, Packing assembly , O-rings
standard temperatures, Feed Screw assembly
1
1/4" Test valve assembly
1
18" D - Boring bar for 3/4" 1 1/4" taps
1
24" P - Boring bar for 1 1/2" 2" taps
2
1/4" Spare retention pilot drill w/wire for D style boring bar
2
3/8" Spare retention pilot drill w/wire for P style boring bar
3
Retention wire for 1/4" pilots
3
Retention wire for 3/8" pilots
1
Owners manual
1
Storage box
1
1" x 3/4" Bell reducer with close nipple for making 3/4“ taps
1
1 1/2" x 1" Bell reducer with close nipple for making 1 1/4 “ taps
1
1" Iron Pipe sub adaptor
1
2" IP sub adaptor
1
11/16" Hi-speed holesaw
1
7/8" Hi-speed holesaw
1
1 1/8 Hi-speed holesaw
1
1-3/8" Hi-speed holesaw
1
1-7/8" Hi-speed holesaw
Total
$3,775.00 + Insurance + Handling + Shipping
Complete Package
D - boring bar allow small cutters screw directly on. A 1/4" retention style pilot drill is supplied with each D boring bar in this package. P– Each boring bar has a Cutter mandrel and retaining pilot drill. A 3/8" retention style pilot drill is supplied with each P boring bar in this package.
Feel free to purchase only what you need for the job.

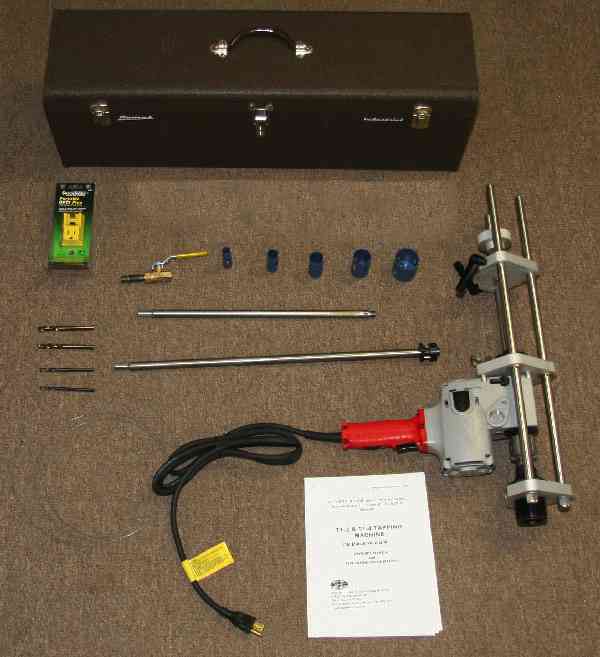

T1-M tapping machine w/ electric 110V drive unit. Drive motor 110V / With GFI Plug,
Back plate w/ spacers for T1A Drive motor,
Packing adaptor housing,
Packing assembly,
O-rings standard temperatures,
Feed Screw assembly,
Upgradeable to 4” taps
Mates your Mueller D5 adaptors
1
1/4" test valve assembly
1
18" D - Boring bar for 3/4" – 1 1/4" taps
1
24" P - Boring bar for 1 1/2" – 2" taps
2
1/4" Spare retention pilot drill w/wire for D style boring bar
2
3/8" Spare retention pilot drill w/wire for P style boring bar
3
Retention wire for 1/4" pilots
3
Retention wire for 3/8" pilots
1
Owners manual
1
Storage box
1
11/16" Hi-speed holesaw
1
7/8" Hi-speed holesaw
1
1 1/8" Hi-speed holesaw
1
1 3/8" Hi-speed holesaw
1
1 7/8" Hi-speed holesaw
Total
$3,550.00 + Insurance + Handling + Shipping
Complete Package
D - boring bar allow small cutters screw directly on. A 1/4" retention style pilot drill is supplied with each D boring bar in this package. P– Each boring bar has a Cutter mandrel and retaining pilot drill. A 3/8" retention style pilot drill is supplied with each P boring bar in this package.
Feel free to purchase only what you need for the job.
T1-4 tapping machine w/ electric 110V drive unit.
Drive motor 110V, Back plate w/ spacers for T1A Drive motor, Chuck wrench for securing boring
bar, GFI electrical protection relay , Packing adaptor housing, Packing assembly, O-rings
standard temperatures, Feed Screw assembly,
1
18” D-Boring bar for 3/4” – 1 1/4” taps
1
18” P-Boring bar for 1 1/2” – 2” taps
1
24” P-Boring bar for 2 1/2” – 3” taps
1
30” P-Boring bar for 3” – 4” taps
2
3/8" Spare retention pilot drill w/wire for P style boring bar
2
1/4” Spare retention pilot drill w/wire for D style boring bar
1
1” x 3/4” Bell reducer and close nipple for 3/4” taps
1
1” Iron Pipe sub adaptor
1
1 1/2” IP sub adaptor
1
1 1/2” IP x 1 1/4” Bell Reducer & Nipple for 1 1/4” taps
1
2” IP Sub adaptor
1
2 1/2” IP sub adapter
1
3” IP Sub adapter
1
4” Flanged sub adapter will bolt-up to 4” Mechanical joint valves also.
1
11/16” High Speed holesaw
1
7/8” High Speed holesaw
1
1 1/8” High Speed holesaw
1
1 3/8” High Speed holesaw
1
1 7/8” High Speed holesaw
1
2 3/8” High Speed holesaw
1
2 7/8” High Speed holesaw
1
3 1/2” High Speed holesaw
3
Retention wire for D - style drills.
3
Retention wire for P - style drills.
1
Owners manual
1
Storage box
Total
$5,650.00 + Insurance + Handling + Shipping
Complete Package
D - boring bar allow small cutters screw directly on. A 1/4" retention style pilot drill is supplied with each D boring bar in this package. P– Each boring bar has a Cutter mandrel and retaining pilot drill. A 3/8" retention style pilot drill is supplied with each P boring bar in this package.
Feel free to purchase only what you need for the job.
Operating max pressure 300psi@ 100°F (std.packing)
Operating temperature 250°F @ 200psi
(optional) High temperture kit, Copper flared
Qtn:
Part:
1
T1Airdrive tapping machine.
Airdrive motor , Back plate w/ spacers for T1Airdrive Drive motor, Chuck wrench for securing boring
bar, GFI electrical protection relay , Packing adaptor housing, Packing assembly, O-rings
standard temperatures, Feed Screw assembly,
1
18” D-Boring bar for 3/4” – 1 1/4” taps
1
18” P-Boring bar for 1 1/2” – 2” taps
1
24” P-Boring bar for 2 1/2” – 3” taps
1
30” P-Boring bar for 3” – 4” taps
2
3/8" Spare retention pilot drill w/wire for P style boring bar
2
1/4” Spare retention pilot drill w/wire for D style boring bar
1
1” x 3/4” Bell reducer and close nipple for 3/4” taps
1
1” Iron Pipe sub adaptor
1
1 1/2” IP sub adaptor
1
1 1/2” IP x 1 1/4” Bell Reducer & Nipple for 1 1/4” taps
1
2” IP Sub adaptor
1
2 1/2” IP sub adapter
1
3” IP Sub adapter
1
4” Flanged sub adapter will bolt-up to 4” Mechanical joint valves also.
1
11/16” High Speed holesaw
1
7/8” High Speed holesaw
1
1 1/8” High Speed holesaw
1
1 3/8” High Speed holesaw
1
1 7/8” High Speed holesaw
1
2 3/8” High Speed holesaw
1
2 7/8” High Speed holesaw
1
3 1/2” High Speed holesaw
3
Retention wire for D - style drills.
3
Retention wire for P - style drills.
1
Owners manual
1
Storage box
Total
Call for pricing 800-279-5659
D - boring bar allow small cutters screw directly on. A 1/4" retention style pilot drill is supplied with each D boring bar in this package. P– Each boring bar has a Cutter mandrel and retaining pilot drill. A 3/8" retention style pilot drill is supplied with each P boring bar in this package.
Feel free to purchase only what you need for the job.
HP-104 Hi Pressure Hottap Machine
HP-104 Complete Turn-key Package
HP-104= 1"-4"Taps 18" Travel
Designed by Tappers for Tappers
HP-104 hi pressure machine has 18" of travel
Taps all types of pipe quickly and safely
1" - 4 " pressure tap-ins
Total weight of machine- 38lbs.(without cutters or
adapters )
Handcrank provided (optional electric power drive)
Optional air drive for flammable environments
Made in USA
Operating max. pressure 1440 psi. @ 100° F
Operating temperature 700° F @ 700 psi. intermittent.
Max. Continuous rating: 350° F @ 1000 psi.
Big Louie Hydraulic Tapping machine w/ motor and disconnects (Drive Pump not included)
Includes operating handle, adaptor bolts, pilot pin & screws.
Cutter adapters for DJR to Smith Style Boring Bar
Steel Skid for shipping and storing
Operating manual.
$ 36,850.00
1
14" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
$ 3,260.00
1
16" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
$ 3,910.00
1
18" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
$ 4,180.00
1
20" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
$ 4,870.00
1
24" Tapping Adaptor Carbon steel (Drilled for ANSI 150 Flange and MJ) (w/3/4” lP bleed-off port)
$ 5,600.00
1
12 3/4" Hot Tap Cutters (Carbide Tipped) (Many sizes available)
$ 1,854.80
1
14 1/2" Hot Tap Cutters (Carbide Tipped)(Many sizes available)
$ 2,175.50
1
16" Hot Tap Cutters (Carbide Tipped)(Many sizes available)
$ 2,283.00
1
18" Hot Tap Cutters (Carbide Tipped)(Many sizes available)
$ 2,400.00
1
22" Hot Tap Cutters (Carbide Tipped)(Many sizes available)
$ 3.337.50
1
12"-18" Pilot drill
$ 610.00
1
20"-24" Pilot drill
$ 765.00
3
3"-12" Pilot spade insert tips
$ 89.90 each
Total
$72,244.00 + Insurance + Handling + Shipping
Feel free to purchase only what you need for the job.
"Super Louie"Hottap Machine
Complete Turn-key Package
"Super Louie" 24"-60" Taps- up to 112" Travel
2-4 Hydraulic Drives
Owners Manual Coming soon
This machine has 74"-112” of travel and performs taps 24” – 60”.
Travel can be increased to 112” or more with “T112 Rail and Boring-bar” package.
Very Powerful Built in drive unit
Tapping machine is hydraulic driven
Machine has patented “Selectable-feed” 1 – speed for advancing and 1 speed – for cutting.
5 1/2” Boring Bar and 4 3 1/2" support rails for ridged cutting.
Gear driven for precision cutting and dependability
Dual - quad hydraulic motor drives for non-stop cutting
Mueller style cutters bolt up with use of an adapter
285 psi. working pressure with quoted adaptors.
285psi & 250 degrees (F) with provided packing, Higher Temperatures are available with optional packing.
American std & British std, adaptors
Made in USA
Qtn:
Part:
Price
1
Super Louie Hydraulic Tapping machine w/ motor and disconnects
Includes operating handle, adaptor bolts, pilot pin & screws.
Cutter adapters for DJR to Smith Style Boring Bar
Steel Skid for shipping and storing
Operating manual.
$ 89,900.00
1
33" STHS Carbide Tipped Hole Saw
$ 8,935.75
Total
$98,835.75 + Insurance + Handling + Shipping
Feel free to purchase only what you need for the job.
